CM 1,5

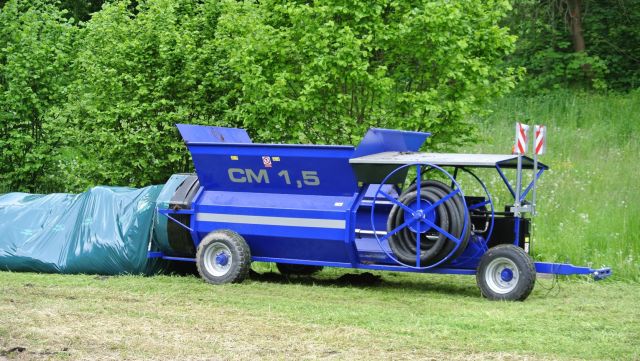

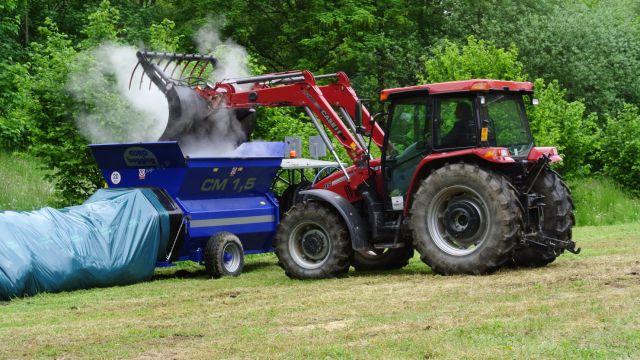

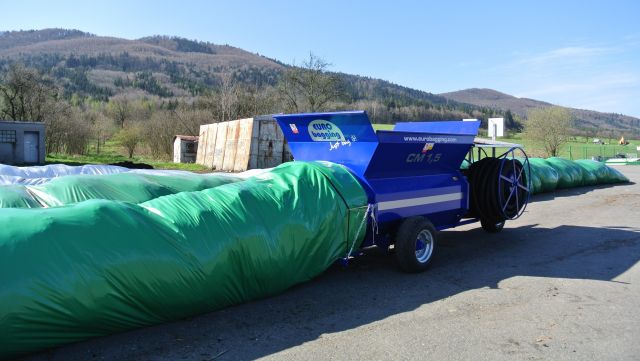

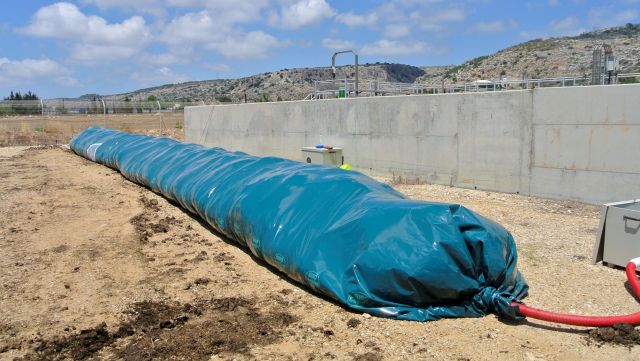

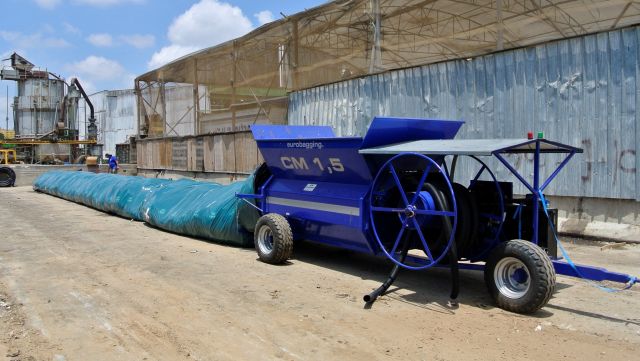

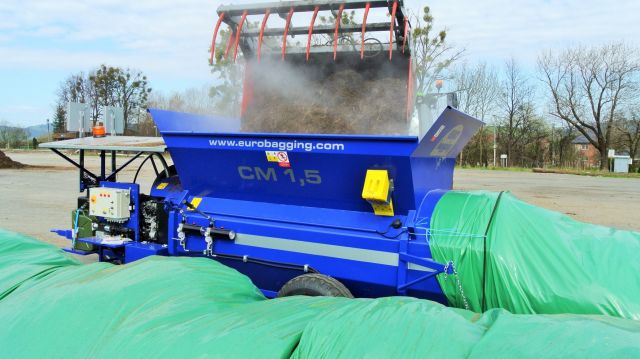

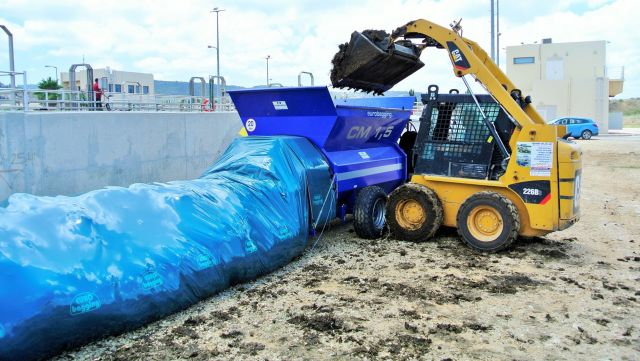

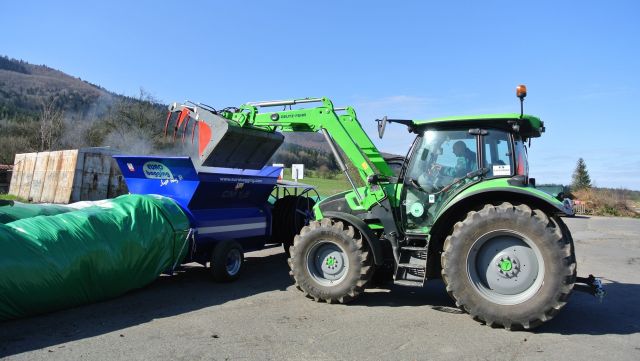

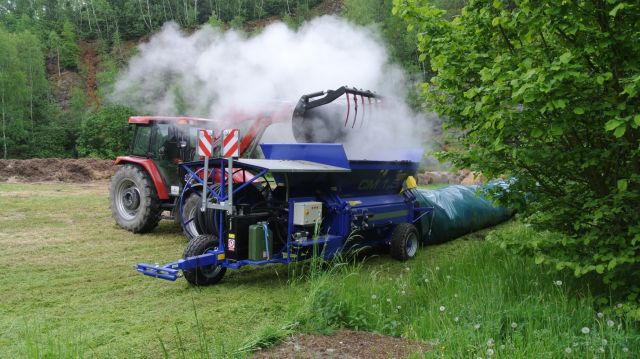

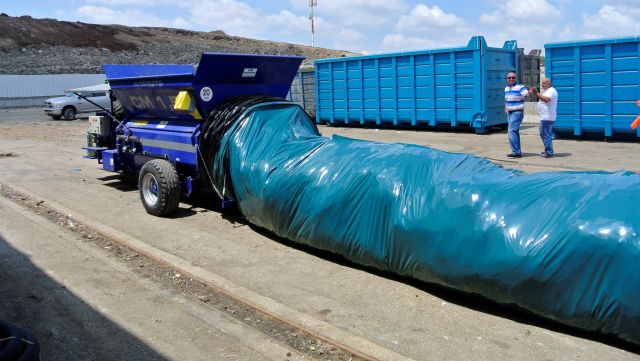

Machine serves for smaller composting plants, e.g. municipalities dealing with compost. There are 2 ways of machine's design, pulled either behind the tractor or behind the pick-up car. There is a its own engine at both cases so it means no need of additional powering machine/device. The machine can be easily operated by one personal. It is possible to supply remote control of machine's working cycle when the machine can be operated by operator of front/telescopic loader loading the machine by composting material. There is a hydraulic braking system for material's compactness inside the bag. There is 1 perforated aeration pipe inside the bag to aerate the material to be composted.



Technical specification:

  • length / width / height: 5425mm / 2170mm / 2180mm
  • weight: 2450 kg
  • road speed: 20 km/h
  • bag´s diameter: 1,5 m
  • engine: Yanmar - diesel 14,5 kW
  • working volume: 2,7 m3
  • working cycle´s time: 120-150 sec.



Download:

CM 1,5 and 2,4 technical sheet
